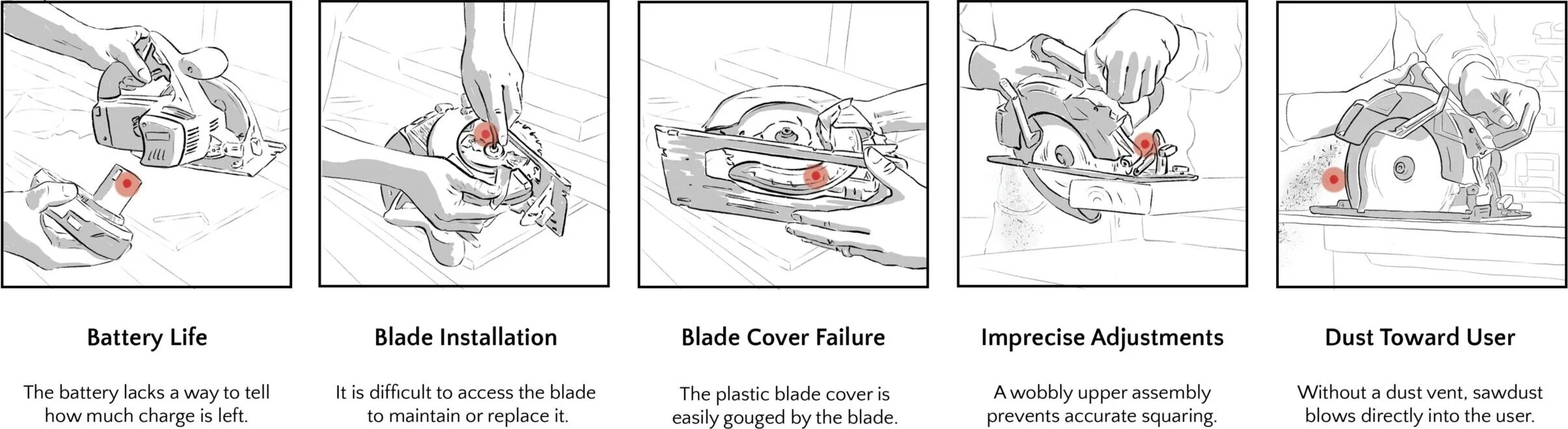

Practical Opportunities
Research

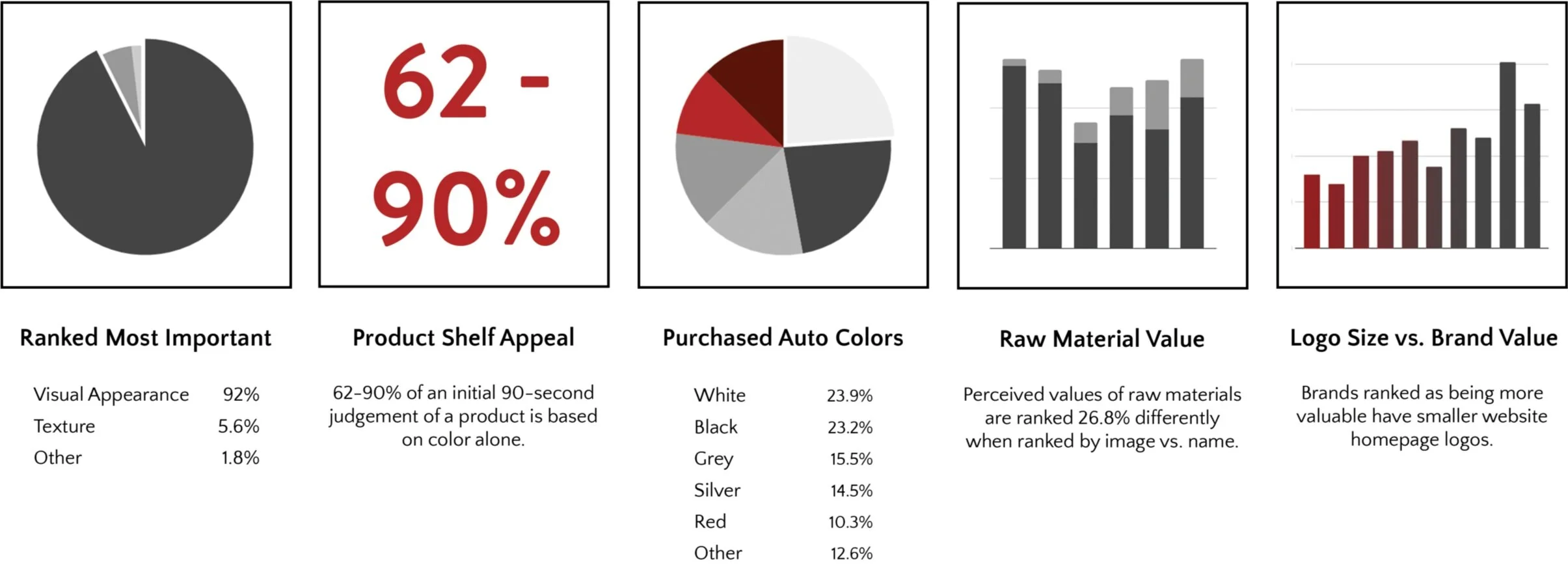

Data is compiled from multiple sources and synthesized in the analysis reports linked to the right.

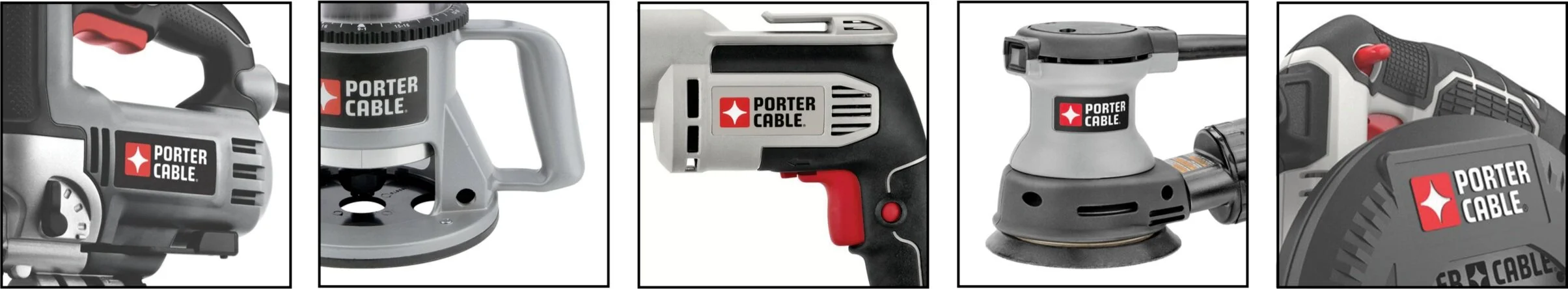

Current Visual Branding
Porter Cable is an American power tool company and subsidiary of Stanley Black & Decker. Although color use is consistent, texture and detailing differ across products and lead to general brand disunity. The current cordless circular saw on the far right has busy textures, excessive detailing, and unexpected color blocking.
Objectives

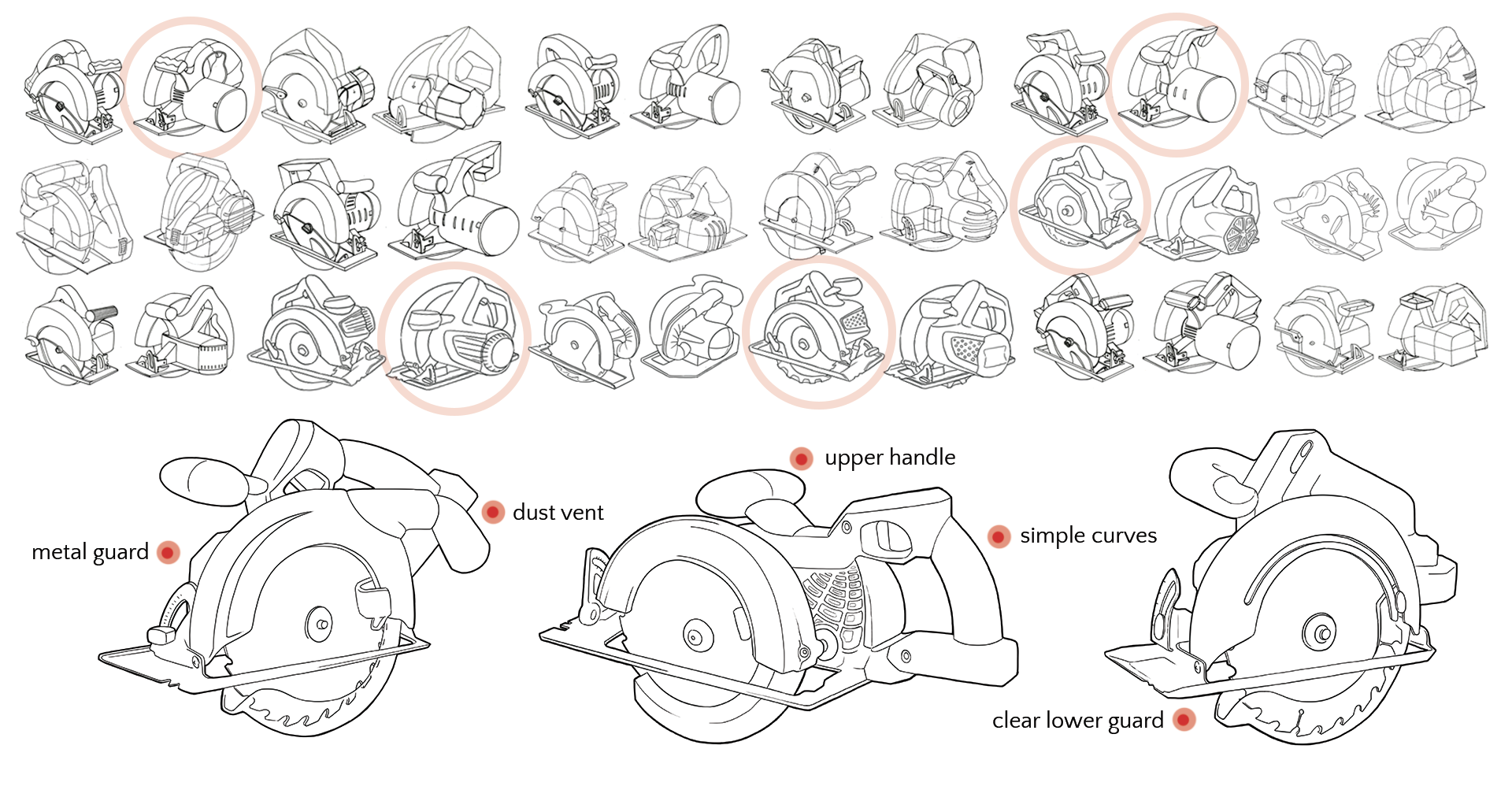

Sketch Exploration

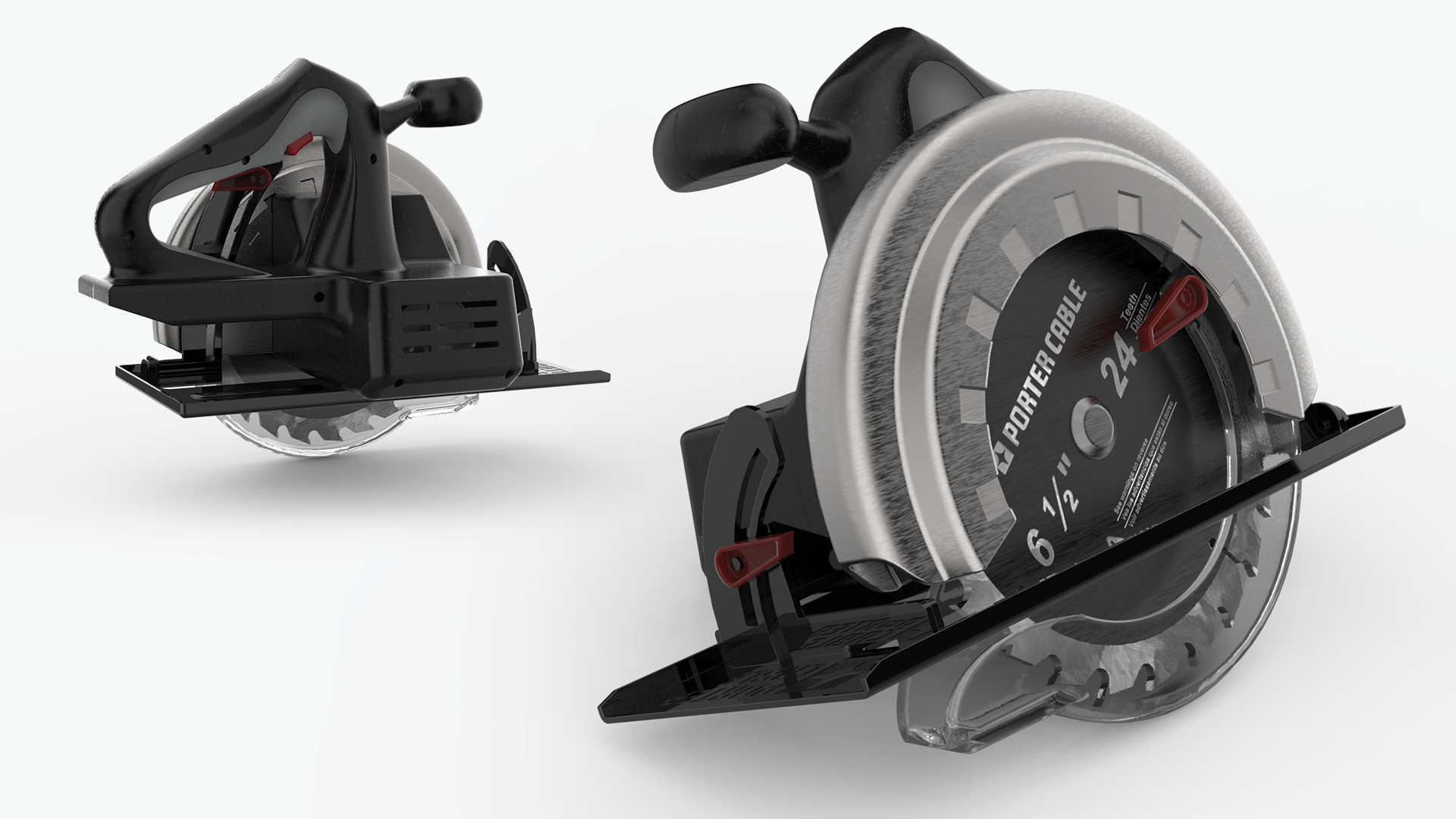

Final Design
In addition to a subdued variation of the previous color scheme, this circular saw features a more understated logo, which is engraved into the front of the shoe assembly.

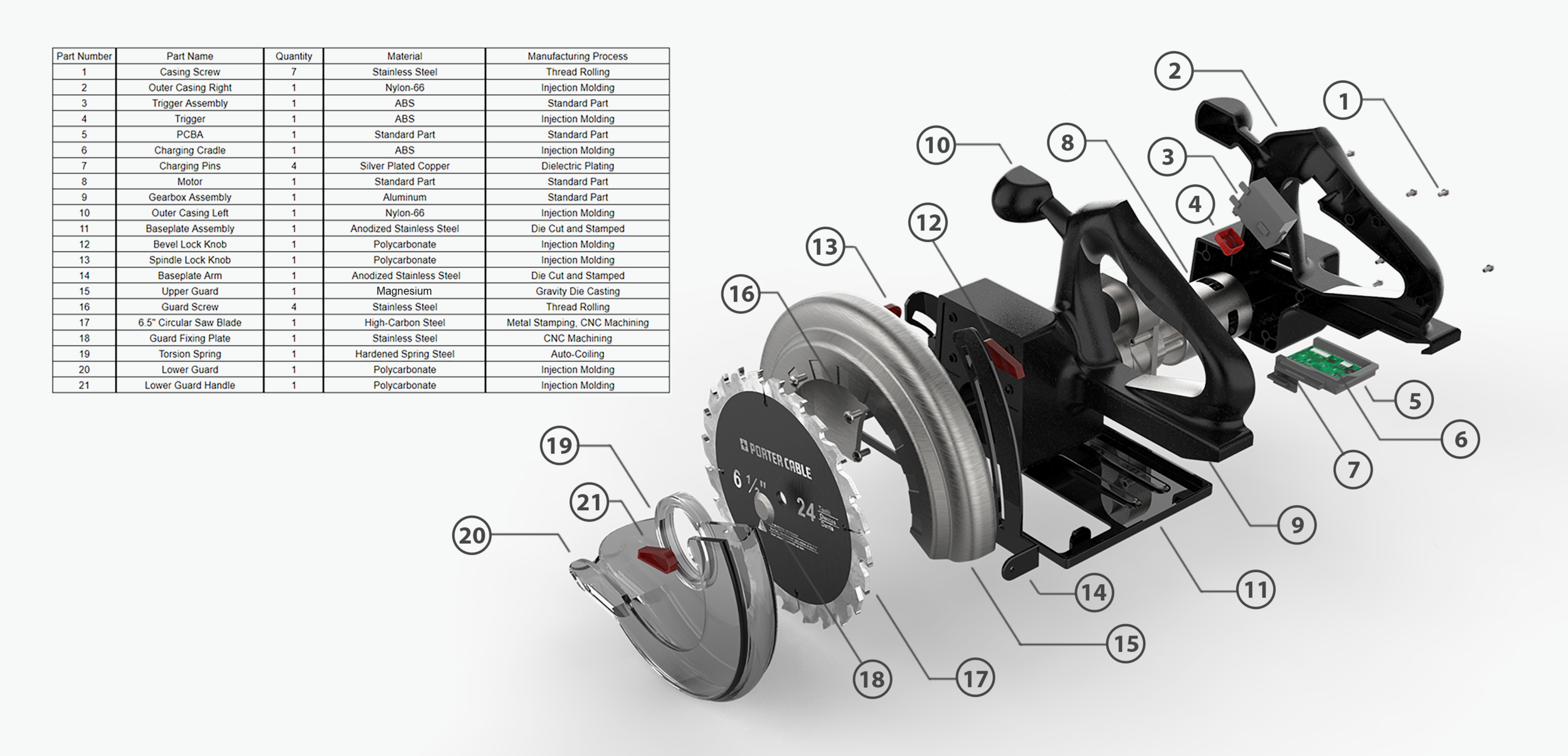

Bill of Materials
The upper blade guard, previously a matte grey plastic, has been replaced with a gravity cast magnesium guard for improved blade safety and more accurate squaring.

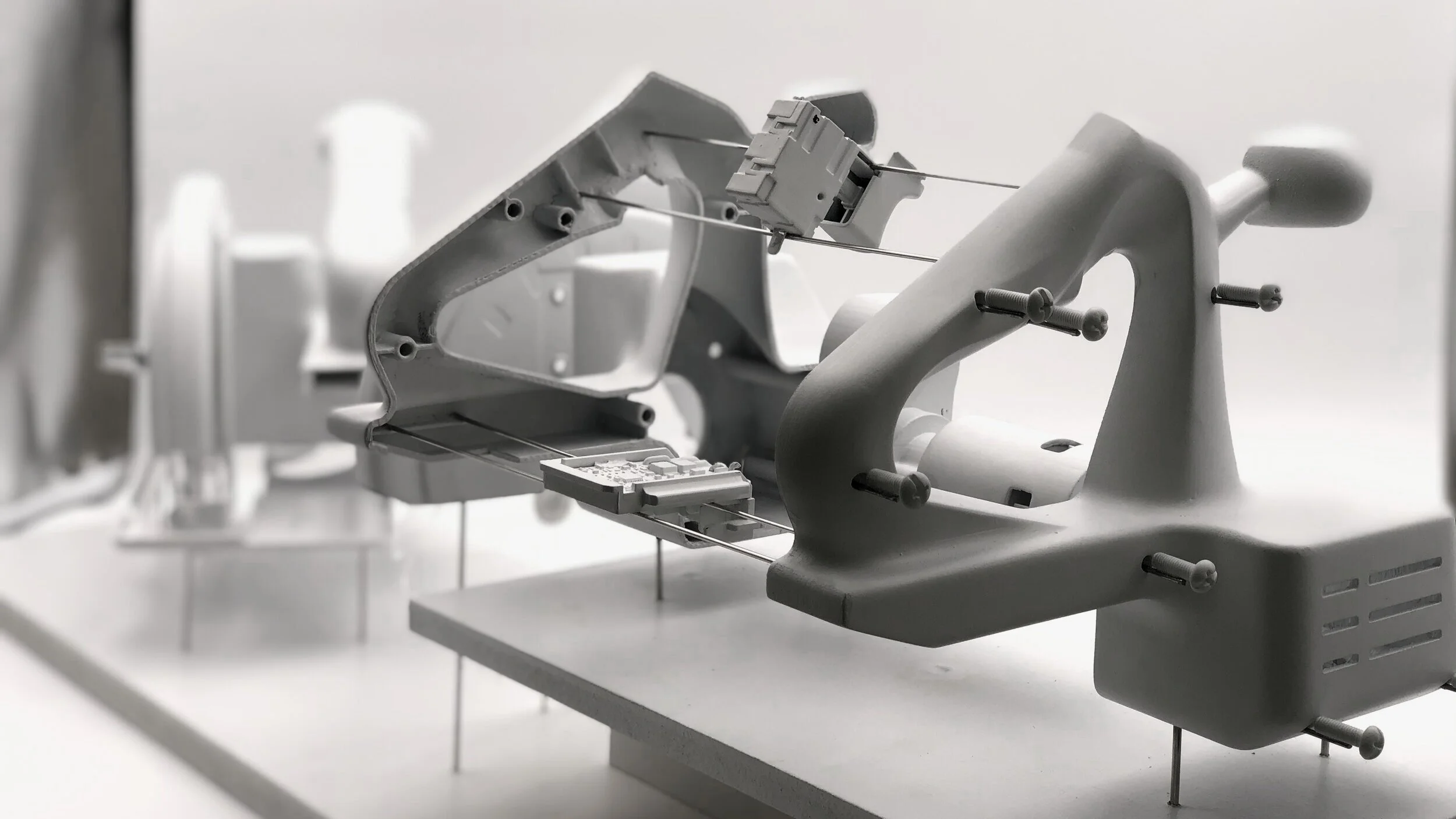

Physical Artifact
Hand-finished 3D printed models of the assembled and exploded cordless circular saw are pictured below.
